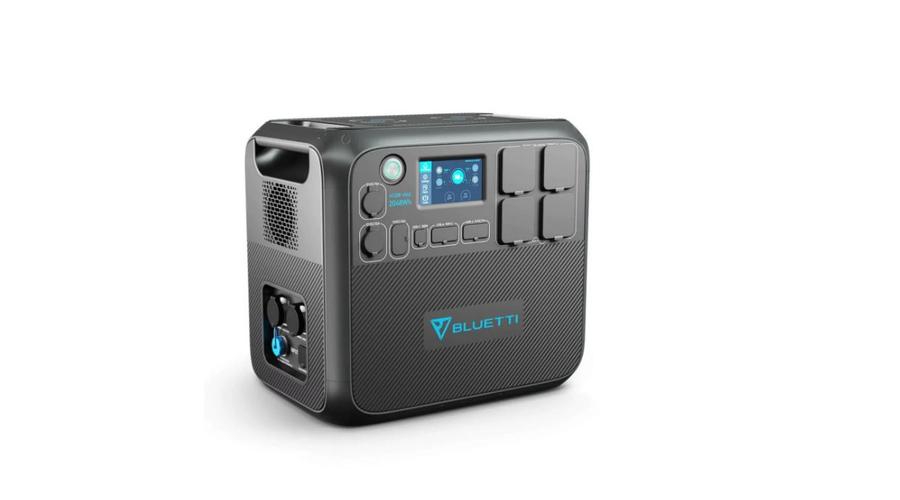

BLUETTI AC200MAX PORTABLE POWER SOURCE | 2,200W 2,048Wh

2200W AC pure sine wave inverter (4,800W max. output)
2048Wh battery capacity
Can be expanded up to 6,144Wh with 2x B230 or up to 8,192Wh with 2x B300 extra batteries
LiFePO4 battery at least 80% capacity even after 3500+ cycles
7 ways to charge (AC / solar energy / car / generator / battery / double AC / AC+solar energy)
900W maximum charge from solar panel
1400W double fast charging (solar energy + AC adapter at the same time)
Intelligent control and monitoring with the BLUETTI application
Omniscient, expandable power source
BLUETTI's first expandable power source, the AC200MAX with 2,048Wh LiFePO4 cells and a 2,200W pure sine wave inverter. Your mobile power center at home or on the go.

Less cost, more options
Should you choose between performance and flexibility? But not with Bluetti! The AC200MAX with expansion ports can accept up to two BLUETTI B230 (2048Wh each) or B300 (3072Wh each) battery modules, which can be connected to increase the total capacity to 8192Wh!

Top up at your convenience
You can charge the AC200MAX with up to 900W from a solar panel, but you can also combine the solar panel with traditional mains charging at the same time, so you can charge your energy monster in less than two hours with a power of 1400W! In addition, each BLUETTI battery module has its own charging port for AC adapters, so with each added module you get an additional 500W charging option (up to two in the case of the AC200MAX).

Small change, huge progress
The AC200 Max can now accept an extra battery module with a converter cable through its solar input port for extra capacity!

Unparalleled output versatility
With the AC200MAX's 16 connectors, you can operate all your consumers at the same time without breaking a sweat. Especially for RV enthusiasts, the AC200 MAX also features a specially designed built-in 30A NEMA TT-30 plug and a 12V 30A Super Power DC plug.

BATTERY INFORMATION

Capacity: 2048Wh (51.2V, 40Ah)
Type: LiFePO4 (lithium iron phosphate)
Lifespan: 3,500+ cycles up to 80% original capacity
Need to recharge: to 80% every 3-6 months
Management system: MPPT controller, BMS, etc.

OUTPUTS

AC outputs: 4x AC output + 1 x 120V/30A NEMA TT-30 with 2,200W power
Inverter type: Pure sine wave
Maximum instantaneous load capacity: 4,800W
USB-A port: 2x 5V/3A, 2x 18W
12V DC outputs: 1x 12V/30A (motorhome connector), 1x 12V/10A (car connector), 2x 12V/10A (5.5mm)
Wireless charging pad: 2x 15W Max.

INPUTS

AC charging: 500W maximum
Solar power supply: 900W Max., VOC 10-145VDC, 15A
Car input: 12/24V from the cigarette lighter port
Maximum input: 1,400W, with AC and solar input simultaneously

RECHARGE TIMES

AC adapter (400W): ≈5.5~6 hours
Solar panel (900W): ≈3~3.5 hours (in sunshine, ideal orientation and low temperature).
12V/24V car charging (100W/200W): ≈10 or 20 hours
AC + solar energy (1,300W): ≈2~2.5 hours (in sunshine, ideal orientation and low temperature).
Dual AC (800W): ≈3~3.5 hours (extra adapter required)

GENERAL

Weight: 28.1 kg
Dimensions: 420 x 280 x 387mm
Operating temperature: -20-40℃
Storage temperature: -10-45°C
Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65
