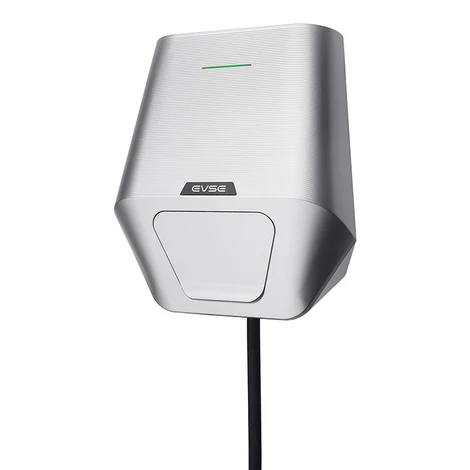

Besen LX30 wall charger for electric vehicles, 22kW, APP

Besen LX30 wall charger for electric vehicles, 22kW, APP

The Besen LX30 is a modern, wall-mounted electric car charger that offers a maximum charging power of 22 kW in three-phase mode and 7 kW in single-phase mode. With the support of a 230V/400V three-phase system and a maximum current of 32A, the charging time is significantly reduced. It is an ideal choice for both private users and businesses looking to manage their fleet charging more efficiently.

Robust design and weatherproof protection

The device's housing is made of high-quality PC+ABS plastic, with IP66 and IK10 protection ratings, ensuring high resistance to mechanical impacts and weather conditions.
The compact size (264.5 × 235.8 × 124 mm) and 5.5 kg weight allow the charger to be safely placed in a garage or outdoors. The durable construction guarantees long-term reliability.

Smart charging control via mobile app

The Besen LX30 can be controlled with the dedicated EVSEMaster app, which allows for comprehensive control of the charging process.
Through the app:

• The charging schedule can be set,

• Energy consumption can be monitored,

• The device status can be viewed in real-time.

With remote control, users can optimize charging time and costs, adjusting to energy tariffs and their own needs.

Advanced safety features

The charger is equipped with several safety protections for reliable and safe operation:

• overvoltage,

• overheating,

• overload, and

• voltage fluctuation protection.

Thanks to the three-phase, five-wire system (L1, L2, L3, N, PE), the Besen LX30 provides stable and efficient power supply in all situations.

Convenient and versatile use

Thanks to the standard charging connector, the Besen LX30 is compatible with most electric vehicles.
The intuitive interface and configurable charging parameters make it an ideal solution for private use, businesses, and public charging points.
The device can be installed in as little as 8 minutes, further enhancing its versatility and usability.

An ideal investment in electromobility

The Besen LX30 is a smart, powerful, and reliable wall charger that meets the needs of modern electric vehicles in every aspect.
With its robust design, high performance, and app-based control, it is the perfect choice for those looking for a safe and future-proof solution for charging their electric car.

Technical specifications

• Manufacturer: Besen

• Model: LX30-22kW-APP

• Material: PC + ABS plastic housing

• Cable arrangement: Bottom incoming and outgoing cable

• Charging interface: Standard charging connector

• Dimensions: 264.5 × 235.8 × 124 mm

• Weight: 5.5 kg

• Input voltage: 230V/400V AC (three-phase, five-wire system – L1, L2, L3, N, PE)

• Maximum current: 32A

• Frequency: 50Hz / 60Hz
