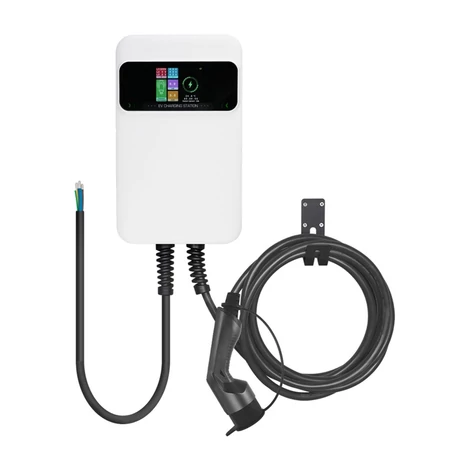

Besen SQ20-11KW-APP wall charger for electric vehicles

Besen SQ20-11KW-APP wall charger for electric vehicles

The Besen SQ20-11KW-APP wall-mounted electric car charger is an ideal solution for home and professional use alike. The device connects to the EVSEMaster application via Bluetooth connection, allowing you to conveniently set the charging time and current, start or stop charging, and check your previous charging data remotely.

Advanced technology and easy operation

The charger's 3.5-inch color LCD display shows the most important charging data in real time:

• charging time,

• voltage,

• current,

• temperature,

• energy consumption.

The built-in intelligent control chip automatically detects and corrects non-hardware errors, increasing safety and reliability.
Software updates are also available through the application, allowing you to access new features and improvements at any time.

Safety and compatibility

The Besen SQ20-APP Wallbox charger provides comprehensive protection:

• against overvoltage and undervoltage,

• in case of overheating and overload,

• against short circuit, ground fault, and discharge.

Compatible with the most common connector standards – SAE J1772, IEC 62196-2, and GB/T – making it usable with most electric vehicles available on the market.
The maximum charging current is 32 A, while the IP66 housing is dust and water-resistant, making it suitable for outdoor installation.

Package contents

• Wall charger

• Set of mounting elements

Technical specifications

• Manufacturer: Besen

• Model: SQ20-11KW-APP

• Output power: 11 kW

• Maximum current: 32 A

• Frequency: 47–63 Hz

• Charging interface: SAE J1772, IEC 62196-2, GB/T

• Display: 3.5" color LCD

• Water resistance: IP66

• Dimensions: 295 × 195 × 65 mm

• Operating temperature: -25°C ~ +55°C

• Relative humidity: 0–95% (non-condensing)

• Maximum installation height: <2000 m

• Standby power consumption: <8 W

• Application: EVSEMaster
