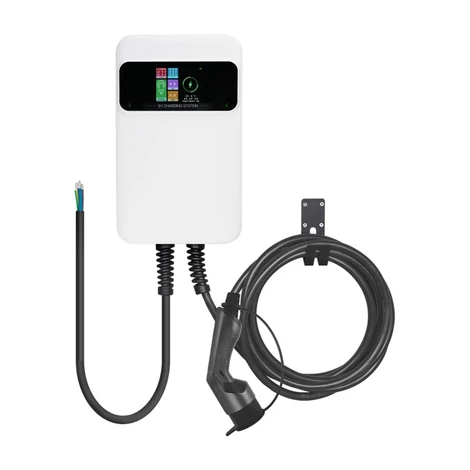

Besen SQ20-7KW-APP wall charger for electric vehicles

Besen SQ20-7KW-APP wall charger for electric vehicles

The Besen SQ20-7KW-APP wall charger is an excellent solution for both home and professional use. Through the Bluetooth connection, you can easily set the charging time and current, start or stop charging remotely, and check the charging history anytime with the EVSEMaster mobile app.

Advanced technology and easy operation

The charger is equipped with a 3.5-inch color LCD display that shows the most important charging parameters in real-time:

• charging time,

• voltage,

• current,

• temperature,

• energy consumption.

The built-in intelligent control chip automatically diagnoses and corrects non-hardware errors, increasing safety and reliability.
In-app, there is also an option for software updates, so the charger can always stay up-to-date with new features.

Safety and compatibility

The SQ20-APP wall charger provides full protection against:

• overvoltage and undervoltage,

• overheating and overload,

• short circuit,

• ground fault and discharge.

It supports SAE J1772, IEC 62196-2, and GB/T charging connectors, making it compatible with most electric vehicles on the market.
The maximum charging current is 32 A, and the IP66 rated housing ensures dust and water resistance, making the charger safe to use indoors and outdoors.

Package contents

• Wall charger

• Mounting elements

Technical specifications

• Manufacturer: Besen

• Model: SQ20-7KW-APP

• Power: 7.2 kW

• Input/output voltage: AC 230 V (1 phase)

• Maximum current: 32 A

• Frequency: 47–63 Hz

• Charging interface: SAE J1772, IEC 62196-2, GB/T

• Display: 3.5" color LCD display

• Waterproof: IP66

• Weight: 6 kg

• Dimensions: 295 × 195 × 65 mm

• Operating temperature: -25°C ~ +55°C

• Humidity: 0–95% (non-condensing)

• Max. altitude: <2000 m

• Standby power consumption: <8 W

• Application: EVSEMaster
