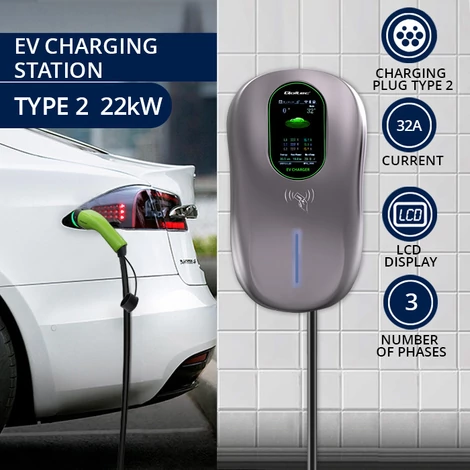

Qoltec EV Charging Station 2-in-1 Type2 | 22kW | Wi-fi| LCD | RFID | 3 phases | Wallbox | 5m

To operate the charger, it is necessary to purchase the QC-52428 RFID writer/reader.

Qoltec EV Charging Station | 3-phase | 22kW | Type 2 | LCD Display | RFID | WiFi | 5m Cable

Fast and Efficient Charging for Electric Vehicles

Don't let low battery limit your mobility. The Qoltec 3-phase EV charging station allows you to charge your electric vehicle up to 10 times faster. The maximum current per phase is 32A, providing powerful and efficient charging.

The charger can be started with an RFID card. It cannot be controlled with a mobile app, so it is primarily designed for large companies and hotels where employees and guests receive pre-loaded RFID cards.

Universal Type 2 Connector

Equipped with a 7-pin Type 2 connector, the charger complies with the current European standard. This connector is compatible with most electric vehicles on the European market. It supports high charging power and has communication pins for data exchange between the charger and the vehicle.

Multifunctional 4.3" LCD Display

• Real-time charging time monitoring

• Temperature sensor for safe operation

• Charging status indicators (LED)

• Automatic fault detection and correction

The smart chip automatically responds to faults and abnormal parameters, ensuring safe and stable operation during the charging process.

Flexible and Convenient Installation

The included 5-meter charging cable with an ergonomic plug ensures flexibility and ease of use. A dedicated wall mount keeps the charging gun clean and accessible, saving space in tight areas.

Durable, Weather-resistant Design

The flame-retardant, UV-resistant polycarbonate housing is water and dust resistant (IP54). Suitable for outdoor installation, it has mounting holes for secure wall placement.

Eco-friendly Charging with Solar Power

Maximize your investment in solar panels by using photovoltaic energy to charge your vehicle. You can charge in real-time during solar energy production or use stored energy for later charging, reducing costs and emissions.

Advanced Safety Features

• Overvoltage protection

• Overcurrent protection

• Ground fault protection

• Short circuit protection

• Temperature monitoring

• Leakage protection

Safety is a top priority. The color of the LEDs changes based on the operating status, keeping users informed at all times.

Technical Specifications

• Manufacturer: Qoltec

• Connector type: Type 2

• Phases: 3

• Maximum power: 22kW

• Input voltage: 220VAC–480VAC

• Maximum current: 32A

• Frequency: 50Hz/60Hz

• Cable: 5 x 6mm² + 1 x 0.5mm², diameter 16.8mm

• Cable length: 5 meters

• Insulation: TPU/TPE

• Display: LCD 4.3"

• Operating temperature: -25°C to +45°C

• IP rating: IP54

• Compatibility: Type 2 EVs (EU standard)

• Color: Black and green

• Dimensions:

  • Charging station: 220 x 385 x 130 mm

  • Charging handle: 210 x 70 x 60 mm

• Net weight: 5.0 kg

• Gross weight: 6.2 kg

Package Contents

• 1 x EV charger

• 1 x Wall mounting bracket

• 1 x Mounting screw set

• 1 x User manual

• 2 x RFID card

Certification: CE
Packaging: Box (320 x 480 x 245 mm)
