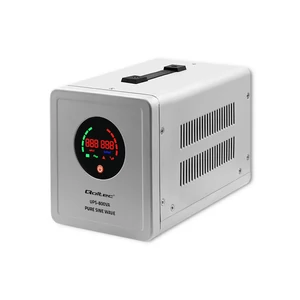

Reliable power source

The Pure Sine Wave uninterruptible power supply is made of the highest class and high quality materials. It is reliable, when it detects a power outage, it automatically switches to battery mode, thus preventing the connected devices from losing power, so they can continue to work. The characteristic feature of the power supply is that it produces an alternating voltage at the output with a pure sine waveform, i.e. the same as in the electrical outlet.

Compatible with any type of power supply
The Qoltec uninterruptible power supply combines several functions to guarantee uninterrupted power supply for furnaces, CO pumps and other household appliances that require continuous power supply. In addition, it offers:
- constant phase,
- long backup period,
- line-interactive - in case of a power failure, the power supply switches to battery mode,
- high charging current,
- pure sine wave - this is the basis of safety and a guarantee of compatibility with any type of power supply,
- modular CPU - controlled circuit,
- AVR function (automatic voltage regulator),
- protection against overload, short circuit, voltage drop, battery overcharge and discharge, overheating and reverse battery connection,
- strong high-power transformer and specially designed high-power circuit,,
- double conversion - stable power supply is ensured,
- 3-stage charging current selection,
- effective heat dissipation,
- two output sockets.

Phase always in a fixed place
A big advantage of the Pure Sine Wave power supply is the constant phase, which means that regardless of the power supply method, whether from the battery or the socket, the phase is always in the same place.

Functional LED display
The built-in LED display guarantees hassle-free management of the device's operation. It constantly informs you about the device's status and parameters, such as: battery capacity, load, overload, battery status, network access and input/output voltage, making working with the device simple, fast and reliable. The LED display and the built-in audible alarm inform you about:
- low battery voltage,
- battery discharge,
- 120% overload,
- 120% overload.

Protections
The power supply is designed in accordance with all required standards and quality control systems. Equipped with numerous protections, it guarantees complete protection of the connected devices. By following the instructions in our manual, you can enjoy trouble-free operation for many years.

Features
Power: 800VA / 560W
Waveform: Pure sine wave
Input voltage range: 147 - 275 VAC
Input frequency range: 45 - 65 Hz
Output voltage range: 230 VAC
Output voltage accuracy: Battery mode: +3%; Mains mode: +10%, -13%
Output frequency: Battery mode: 50/60 Hz ± 1%; Mains mode: synchronized with input frequency
Transmission time: ≤8ms
Efficiency: Battery mode: >75%; Mains mode: > 95%.
Battery voltage: 12V
Charging current (AC): 10A
PFC: 0.7
IP rating: IP20
Output sockets: 1 x FRANCE (Type E CEE 7/5) 1 x SCHUKO (Type F CEE 7/3)
Safety: - Overvoltage protection - Overload protection - Short circuit protection - High and low voltage protection - Overheating protection - Reverse battery connection protection
Operating temperature: -10˚C ~ +40˚C
Certification: CE
