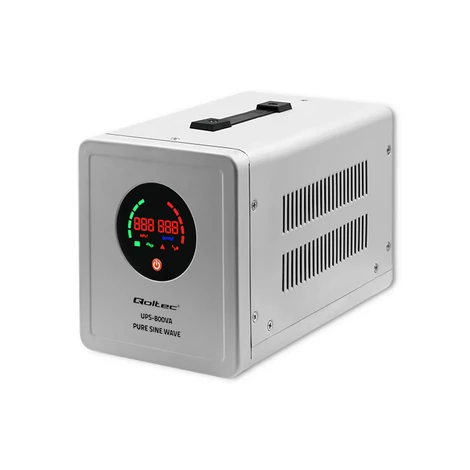

DISCOVER THE STABILITY OF WORKING WITH QOLTEC'S 800VA PURE SINE WAVE UPS

Uninterrupted power supply for low-power devices such as monitoring systems, power tools, heaters, and many more for extended periods

The Pure Sine Wave UPS boasts the highest class and is built from high-quality materials. It is reliable in the event of a mains power outage, automatically switching to battery mode to prevent power loss to connected devices, allowing them to continue operating.

The Qoltec UPS combines multiple functions to ensure continuous power supply to devices such as:

• power tools,

• fans,

• monitoring systems,

• LED lighting,

• gate drives,

• CO heaters,

• pumps.

It will also prove useful when working with many other low-power devices requiring continuous power for extended periods. You may already envision the UPS Qoltec Pure Sine Wave 800VA 560W with a steady phase, perhaps in your basement, workshop, or garage, fulfilling its duty with a connected battery.

PURE SINE WAVE – HIGHEST QUALITY AND DEVICE SAFETY

Stable, clean energy with a sinusoidal waveform for full device protection

Qoltec’s online UPS units provide stable, interference-free clean energy with a sinusoidal waveform. This ensures full protection for your devices, thanks to dual conversion, which first converts AC mains power to DC, then back to AC. As a result, your devices are protected against network disturbances such as voltage drops, outages, surges, and failures.

HOW LINE INTERACTIVE UPS WORKS

Built-in automatic voltage regulation circuit ensures constant voltage regulation

The Line Interactive UPS relies on a built-in AVR (Automatic Voltage Regulation) system. This means the input voltage is automatically adjusted. In case of a drop or increase in voltage, the AVR system stabilizes it to a value close to nominal. Such a solution in an uninterruptible power supply positively influences the durability of the connected battery and provides constant, stable voltage to the connected device.

COMPATIBILITY WITH ANY TYPE OF POWER SUPPLY

Line interactive, pure sine wave, long backup time, 3-step charging current selection, and more

Qoltec’s 800VA UPS offers:

• long backup time,

• line-interactive operation – switches to battery mode during power outages,

• high charging current,

• pure sine wave – ensuring safety and compatibility with any type of power supply,

• CPU-controlled modular design,

• AVR function (Automatic Voltage Regulator),

• protection against overload, short circuit, voltage drop, battery discharge, overheating, and reverse battery connection,

• powerful transformer with high capacity and a specially designed circuit with high load capability,

• dual conversion – delivering stable power,

• 3-step charging current selection,

• effective heat dissipation,

• two output sockets.

STRAIGHTFORWARD AND READABLE – FOR YOUR CONVENIENCE

Integrated LED display ensures intuitive operation and monitoring of UPS parameters

The built-in LED display ensures simple device management. It provides real-time information about the status and parameters, making working with the UPS easy, fast, and reliable.

The LED display and audible alarms inform about:

• low battery voltage,

• battery discharge,

• overload <120%,

• overload >120%.

FULL PROTECTION OF CONNECTED DEVICES

High standards of protection ensure the safety of connected devices

The UPS is designed in accordance with all required standards and quality control systems. Equipped with a wide range of protections, it guarantees full safety for connected devices. By following the instructions in the included manual, you can enjoy uninterrupted device operation for many years.

Technical data

• Producer: Qoltec

• Power: 800VA / 560W

• Wave form: Pure sine wave

Input parameters

• Input voltage range: 147 – 275 VAC

• Input frequency range: 45 – 65 Hz

Output parameters

• Output voltage range: 230VAC

• Output voltage precision: Battery mode: ±3%; Network mode: +10%, -13%

• Output frequency: Battery mode: 50/60 Hz ±1%; Mains mode: synchronized with input frequency

• Transfer time: ≤8ms

• Efficiency: Battery mode >75%; Network mode >95%

Battery parameters

• Built-in battery: No

• Number of batteries: 1

• Battery voltage: 12V

• Charge current (AC): 10A

Other parameters

• PFC: 0.7

• Output sockets: 1 x French (Type E CEE 7/5), 1 x Schuko (Type F CEE 7/3)

• Screen: LED

• Noise level: <56 dB (1m distance at full load)

• Cooling system: Fan

• IP rating: IP20

• Signalization: Failure mode, low battery voltage, overload, overheating, other errors

• Security: Against overvoltage, overload, short circuit, high/low voltage, overheating, reverse battery connection

• Remarks: No battery included in the set. Follow the enclosed user manual for instructions.

• Colour: Grey

• Storage humidity: 10 – 95% without condensation

• Operating temperature: -10°C ~ +40°C

• Storage temperature: -20°C ~ +40°C

• Dimensions (D/L x W x H): 310 x 160 x 180 mm

• Package depth/length: 202 mm

• Package width: 365 mm

• Package height: 225 mm

• Net weight: 6.3 kg

• Gross weight: 6.6 kg

• Certificate: CE
