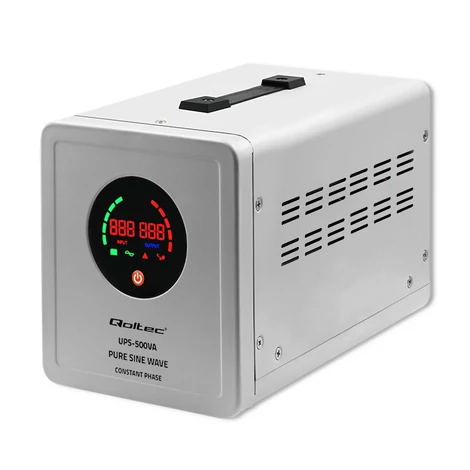

Discover the Stability of Qoltec’s 500VA Pure Sine Wave UPS

Uninterrupted power for monitoring systems, tools, heaters, pumps, and many more low-power devices.

The Qoltec 500VA / 350W Pure Sine Wave UPS provides reliable backup power during mains outages, automatically switching to battery mode to protect connected devices and keep them operating without interruption. Built from high-quality materials, it ensures stability, safety, and long-term performance.

Key Features

• Pure sine wave output – stable, interference-free energy for maximum device protection

• Line-interactive design with AVR – automatic voltage regulation for consistent power supply

• Constant phase – phase remains steady regardless of power source

• Dual conversion technology – AC → DC → AC for the highest quality output

• Multiple protections – overload, short circuit, over/undervoltage, overheating, reverse battery connection

• Integrated LED display – clear real-time monitoring of parameters and alerts

• Flexible compatibility – ideal for monitoring systems, LED lighting, fans, gate drives, pumps, CO heaters, and other low-power devices

Protection & Monitoring

The UPS is equipped with an LED display and audible alarms that notify about:

• low battery voltage,

• battery discharge,

• overload (<120% and >120%),

• overheating,

• error status.

By following the included manual, you can ensure safe, continuous operation of connected devices for years.

Technical Data

Producer: Qoltec
Power: 500VA / 350W
Waveform: Pure sine wave

Input

• Voltage range: 147 – 275 VAC

• Frequency range: 45 – 65 Hz

Output

• Voltage: 230 VAC

• Voltage precision: Battery mode ±3%; Network mode +10%, -13%

• Frequency (battery mode): 50/60 Hz ±1%

• Transfer time: ≤8 ms

• Efficiency: Battery mode >75%; Network mode >95%

Battery

• Built-in battery: No (external required)

• Number of batteries: 1

• Battery voltage: 12V

• Charging current (AC): 7A

Other Parameters

• Power factor (PFC): 0.7

• Output sockets: 1 × French (Type E CEE 7/5), 1 × Schuko (Type F CEE 7/3)

• Display: LED

• Noise level: <56 dB (1m at full load)

• Cooling system: Fan

• IP rating: IP20

• Protection: Overvoltage, overload, short circuit, high/low voltage, overheating, reverse battery connection

• Color: Grey

• Storage humidity: 10–90% (non-condensing)

• Operating temperature: -10°C ~ +40°C

• Storage temperature: -20°C ~ +40°C

Dimensions & Weight

• Unit dimensions (L × W × H): 310 × 140 × 175 mm

• Package dimensions (L × W × H): 375 × 185 × 210 mm

• Net weight: 5.0 kg

• Gross weight: 5.3 kg

Certification

• CE

✅ Note: No battery included in the set – external 12V battery required.
