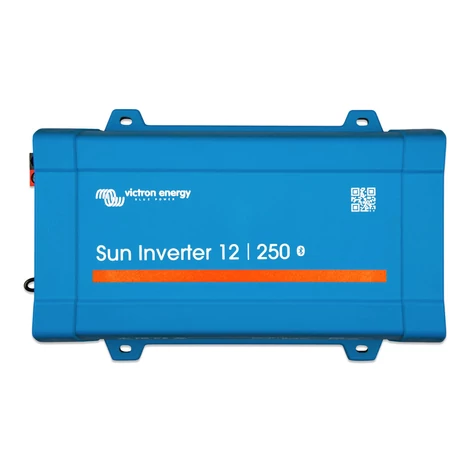

Victron Energy Sun 12V 250VA/200W inverter built in charger IEC

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO mode – Sun Inverter 12/250
When in ECO mode, the inverter will switch to standby once the load drops below a preset value (minimum load: 15 W). Once in standby, the inverter will switch on briefly every set time interval (adjustable, default: every 2.5 seconds). If the load exceeds the preset level, the inverter remains on.

PWM solar charger
The solar charger ensures that the batteries are charged with energy from the solar panels. The charging algorithm is programmable.

Remote on/off
The inverter can be switched on or off remotely using the Phoenix Inverter Control VE.Direct panel (not included). Alternatively, a remote switch can be connected to a two-pole connector, or between the battery positive terminal and the left-hand contact of the two-pole connector.

LED diagnostics
For details, refer to the manual.

Bluetooth
Inverter and solar charger parameters can be read, monitored, and configured via Bluetooth using the VictronConnect app.

VE.Direct communication port
The VE.Direct port allows connection to a GX device, GlobalLink 520, or a computer for monitoring via the VRM portal or configuration using the VictronConnect app.

Monitoring via the VictronConnect app or a GX device:
• Inverter input/output voltage and load percentage
• Solar power, voltage, and current
• Operating status and alarms

Fully configurable using the VictronConnect app:
• Low battery voltage alarm trigger and reset levels
• Low battery shut-down and restart levels
• Dynamic cut-off: load-dependent shut-down level
• Output voltage: 210–245 V, frequency: 50 Hz or 60 Hz
• ECO mode on/off and sensitivity
• Charger current, algorithm, and voltages
• Battery charging with temperature compensation or low temperature cut-off

Load transfer to another AC source: automatic transfer switch
For our low-power inverters, we recommend the Filax automatic transfer switch. The Filax features a very short transfer time (less than 20 ms), so computers and other electronic equipment will continue to operate without disruption.

DC and PV connections with screw terminals
No special cable terminals or tools are needed for installation.

Available with IEC-320 socket
An IEC-320 male plug is included.
