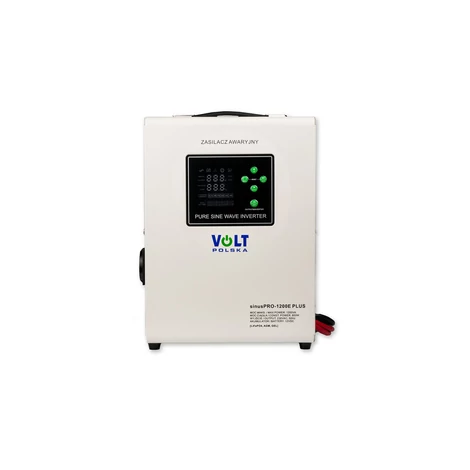

Volt Polska SINUS PRO 1200 E PLUS 12/230V (800W/1200VA) UPS

SINUS PRO 1200 E PLUS 12/230V (800/1200W) UPS

The sinusPRO 1200 E PLUS 12V UPS is designed for uninterrupted power supply to central heating systems (boilers, pumps, controllers, feeders, etc.), computers, servers, PC sets, automatic gates, automation devices, power tools, and more.
In the event of a 230VAC mains power failure, the device automatically switches to battery mode, ensuring continuous system operation and protection against installation damage or irreversible data loss.

Key Features:

This device combines several functions in one:

• Pure sine wave DC/AC inverter

• UPS emergency switch

• Mains battery charger (rectifier)

• AVR voltage stabilizer

• Color display for monitoring the most important operating parameters

The units in this series are line-interactive UPS systems and may reverse output polarity when switching to battery mode.

What makes the SINUS PRO 1200 E PLUS 12V stand out?

The pure sine wave UPS generates an output voltage with a sinusoidal waveform identical to the mains grid. This allows it to power inductive devices such as power tools, air compressors, air conditioners, refrigerators, freezers, and more.

Check out the very practical tutorial video on how to connect and configure the SINUS PRO E PLUS UPS (example shown on SINUS PRO 900 E PLUS):
Watch here

Technical Specifications:

• Total power (peak): 1200VA

• Continuous power: 800W

• Input voltage: 170–270VAC

• Output voltage: 230VAC ±1% (battery mode), 216–245VAC (mains mode with AVR)

• Battery voltage: 12VDC

• Max. charging current: 20A

• Frequency: 50/60Hz ±1Hz

• Waveform: Pure sine wave

• Protections: Overload, overcharge, deep discharge

• Operating temperature: 0–40°C

• Dimensions: 311 × 232 × 140 mm

• Weight: 7.5 kg
