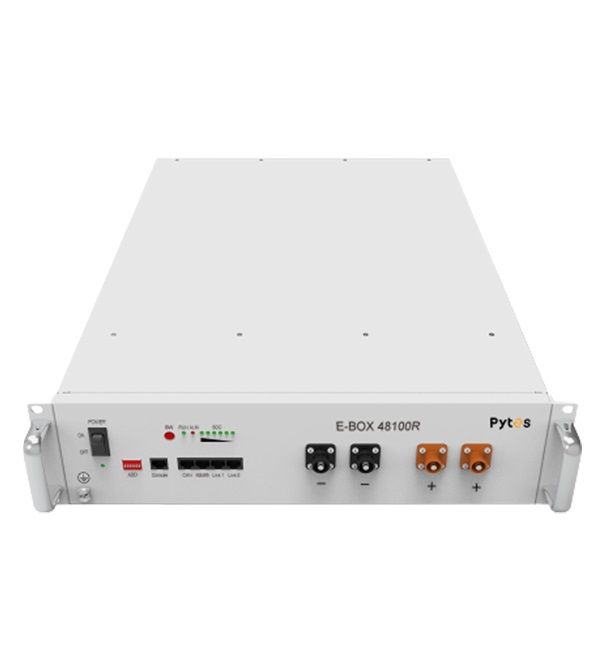

Pytes E-Box-48100R Energy Storage for Solar Systems / LiFePO4 Battery / 48V 100Ah 5 kWh

Pytes E-BOX series, the new generation LFP battery for home energy storage system. It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance, and could be deployed to the building block of energy storage system by being assembled in parallel. It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecom stations.

Features:

• Self-Consumption store excess energy generated by solar panels and use it whenever needed
• Back-Up Power Supply provide emergency power supply during grid outage
• Electricity Bills Reductioncharge the battery during off-peak period and discharge the battery during peak period
• Smart Energy Managementmeasure, monitor and manage the system in real-time optimize the system life span by intelligent algorithms
• Longest Life and Highest Safety more than 6000 cycles @90%DOD
• Wide Compatibility compatible with mainstream inverters

Specifications:

• Chemistry: Lithium Iron Phosphate
• Nominal Voltage: 51.2V
• Voltage Range: 47.5V-58V
• Nominal Capacity: 100Ah
• Nominal Energy: 5.12kWh
• Maximum continuous charge current: 50A
• Maximum Discharge Rate: 50A
• Communication Protocol: RS232, RS485, CAN
• Rack U height: 2.6U
• Dimension(L*W*H): 17.32"x 24.41"x 4.61"
• Weight: 112.5
